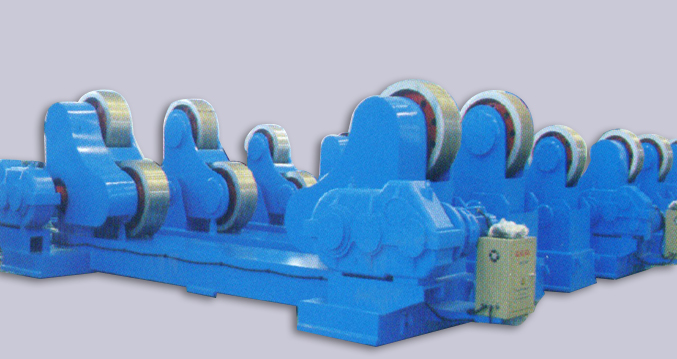

ZT series single-drive turning roll
1. Tilt angle of roller assembly automatically adjusted by diameter of workpiece, manual adjustment not required
2. Driving roller of gear engagement type
3. Steel-rubber roller, or all-steel roller for large-tonnage application, high load capacity and strong drive capability
4. Imported variable-frequency governor with wide adjustment rage, high starting torque and accuracy of adjustment
5. Optional operator pendant, wide range of remote control, easy and reliable operation
Technical parameters：
| Model |
Max. load
(kg) |
Diameter range
of workpiece
|
Roller diameter
and width (mm) |
Linear velocity
of roller
(m/h) |
Motor power
(kw) |
Mode of
speed control |
| Rubber |
Metal |
| GLHZ-5 |
5000 |
Φ250~2300 |
Φ250×100 |
2×Φ244×20 |
6~60 |
0.75 |
Electromagnetic stepless
control or
variable-frequency
stepless control |
| GLHZ-10 |
10000 |
Φ320~2800 |
Φ100×120 |
2×Φ294×25 |
6~60 |
1.1 |
| GLHZ-20 |
20000 |
Φ500~3500 |
Φ350×120 |
2×Φ344×30 |
6~60 |
1.5 |
| GLHZ-40 |
40000 |
Φ600~4200 |
Φ400×120 |
2×Φ394×40 |
6~60 |
3 |
| GLHZ-60 |
60000 |
Φ750~4800 |
Φ450×120 |
2×Φ444×50 |
6~60 |
4 |
| GLHZ-80 |
80000 |
Φ850~5000 |
Φ500×120 |
2×Φ494×60 |
6~60 |
4 |
| GLHZ-100 |
100000 |
Φ1000~5500 |
Φ500×120 |
2×Φ494×80 |
6~60 |
5.5 |
| GLHZ-150 |
150000 |
Φ1100~Φ6000 |
—— |
Φ600×280 |
6~60 |
7.5 |
| GLHZ-250 |
250000 |
Φ1200~Φ7000 |
—— |
Φ700×350 |
6~60 |
2×5.5 |
| GLHZ-500 |
500000 |
Φ1800~Φ8000 |
—— |
Φ850×350 |
6~60 |
2×7.5 |

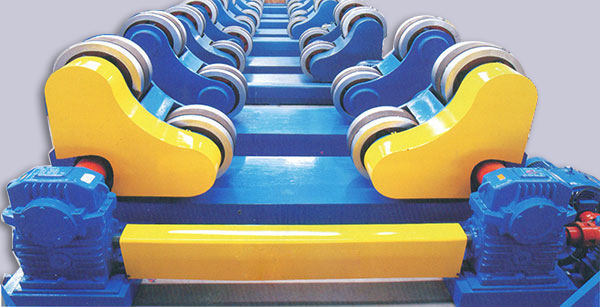

ZT self-adjusted dual-drive turning roll
Features:
1. Tilt angle of roller assembly automatically adjusted by diameter of workpiece, manual adjustment not required
2. Driving roller of gear engagement type
3. Steel-rubber roller, or all-steel roller for large-tonnage application, high load capacity and strong drive capability
4. Imported variable-frequency governor with wide adjustment rage, high starting torque and accuracy of adjustment
5. Optional operator pendant, wide range of remote control, easy and reliable operation
Technical parameters：
| Model |
Max. load
(kg) |
Roller diameter
|
Roller diameter
and width (mm) |
Linear velocity
of roller
(m/h) |
Motor power
(kw) |
Mode of
speed control |
| Rubber |
Metal |
| GLHK-3 |
3000 |
Φ250-Φ1800 |
Φ200×100 |
2×Φ195×16 |
6~60 |
2×0.25 |
Electromagnetic stepless
control or
variable-frequency
stepless control |
| GLHK-5 |
5000 |
Φ250-Φ2300 |
Φ250×100 |
2×Φ240×20 |
6~60 |
2×0.37 |
| GLHK-10 |
10000 |
Φ320-Φ2800 |
Φ300×120 |
2×Φ290×25 |
6~60 |
2×0.55 |
| GLHK-20 |
20000 |
Φ500-Φ3500 |
Φ350×120 |
2×Φ390×30 |
6~60 |
2×1.1 |
| GLHK-40 |
40000 |
Φ600-Φ4200 |
Φ400×120 |
2×Φ440×40 |
6~60 |
2×1.5 |
| GLHK-60 |
60000 |
Φ750-Φ4800 |
Φ450×120 |
2×Φ490×50 |
6~60 |
2×2.2 |
| GLHK-80 |
80000 |
Φ850-Φ5000 |
Φ500×120 |
2×Φ490×60 |
6~60 |
2×3 |
| GLHK-100 |
100000 |
Φ1000-Φ5500 |
Φ500×120 |
2×Φ490×70 |
6~60 |
2×4 |
| GLHK-160 |
160000 |
Φ1100-Φ6000 |
—— |
Φ650×250 |
6~60 |
2×4 |
| GLHK-250 |
250000 |
Φ1200-Φ7000 |
—— |
Φ700×280 |
6~60 |
2×5.5 |
| GLHK-500 |
500000 |
Φ1500-Φ8000 |
—— |
Φ850×350 |
6~60 |
2×11 |
| GLHK-630 |
630000 |
Φ1500-Φ9000 |
—— |
Φ900×380 |
6~60 |
2×11 |
|
